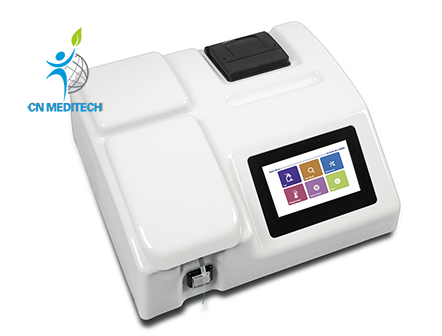

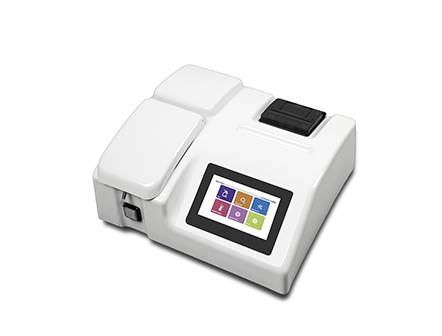

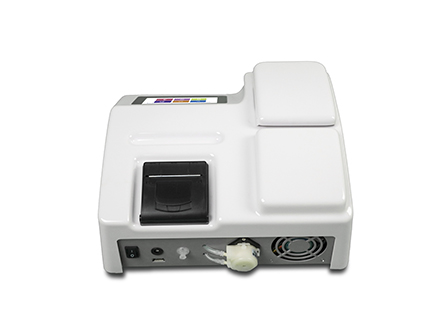

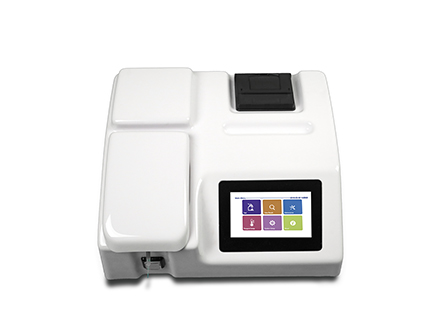

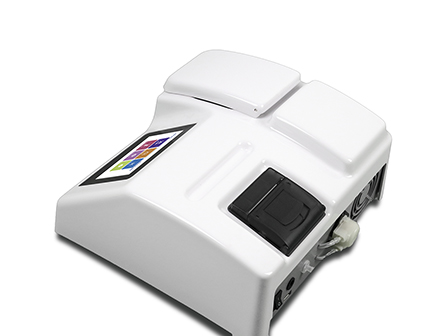

Model:CNME030414S
Features:
*Windows embedded compact 7 smart operation system.
*4.3" inch true color touch screen(800*480 pixels).
*Flow cell & cuvette testing mode.
*Huge storage of more than 300 programs & 1000 sample results.
Specifications:
| Test method | 1 point end, 2 point end(Sample blank), Kinetics, Fixed-time |
| Optics | 6 standard filters: 340nm, 405nm, 505nm, 546nm, 578nm, 630nm |
| Lamp house | Long-life tungsten halogen lamp(6V/10W), auto-sleep function |
| Display | 4.3"TFT LCD with touch screen, 800*480 pixels |
| Printer | Build-in thermal printer, 57mm printer paper |
| Temperature | 25, 30, 37°C and Room temperature. By means of Peltier elements |
| Flow cell capacity & optical path | 32μl, 10mm |
| Resolution | 0.0001 Abs |
| Photometric range | 0.0000-3.0000 Abs |
| CPU | ARM Cortex-M3,120MHz |
| Memory | Over 300 programs, 1000 results can be stored |
| Interface | 1 USB Port External keyboard, mouse facility |
| Power requirement | Wide power supply AC 100-240V, 50/60 Hz |
| External dimension | 300mm*270mm*150mm |
| Weight | 3.4Kg |
