Model:CNME05F03E
Standard option:

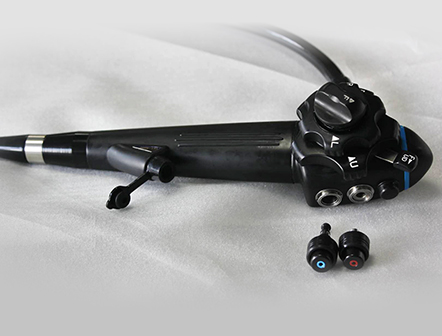

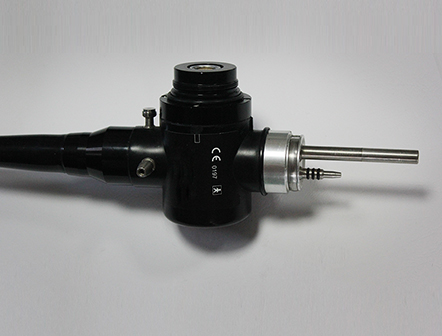

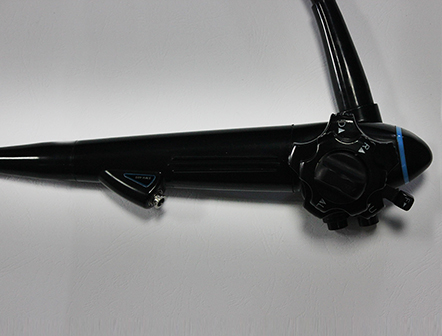

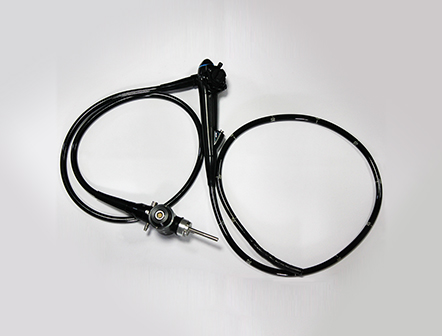

| Item | Video Gastroscope | Video Colonoscope |
| Diameter of distal- end | 9.8mm | 13.0mm |
| Diameter of insert tube | 9.6mm | 12.8mm |
| Clamp aperture | 2.8mm | 3. 8mm |
| Working length | 1030mm | 1350mm |
| Total length | 1330mm | 1650mm |
| View of field | 140° | 140° |
| Depth of view | 3- 100mm | 3-100mm |
| Resolution | Sony 440,000 Pixels high resolution Photosensitive 1/6 CCD | |
| Tip deflection | up 210°down 90°L/R 100° | up 180°down 180°L/R 160° |

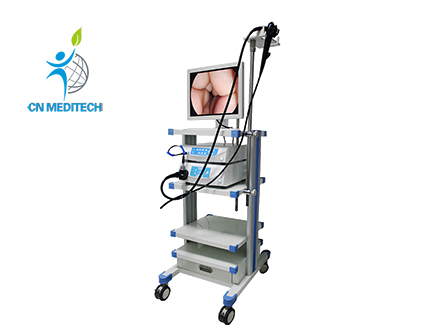

Video processor and light cold source machine:
| Type | Standard option |
| Lamp | LED light (80W white) |
| Power | 220-240V; 50-60HZ |
| Illuminance | ≥200,000 lx |
| Color temperature | ≥5300K |
| Video signal output | 2 CVBS,S-Video |
| Sharpness adjustment | 0-30 grade |
| Gain function | 1-3 grade |
| Electronic shutter | Auto-shutter ,Manual shutter 10 steps can be adjustment |
| Air pump pressure | 30-60Mpk |
| Metering mode | Peck metering / average metering, metering Area delineation |
| Lens optional | Manual lens, automatic lens, video lens , Left and right side Image position transformation |
| Air flow | 4-10 L/min |
