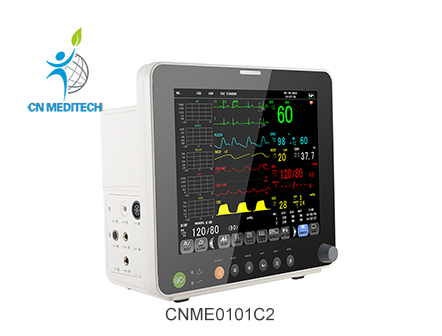

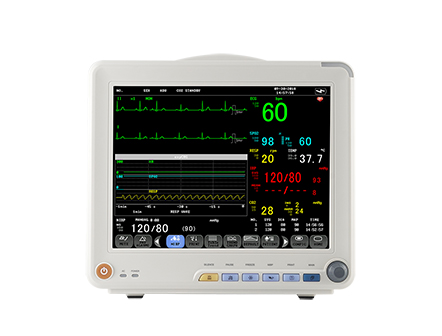

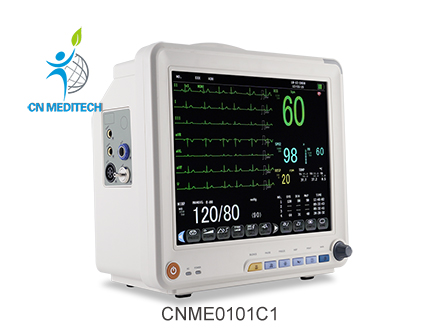

Model:CNME0101C1/CNME0101C2
Features:
12.1 inch color display with 800*600 resolution.
Three Working Modes: Monitoring, Surgery and Diagnosis.
Simple and friendly operating display interface.
Multi-display modes suitable for different applications:Standard Interface,Large font,ECG Standard Full Display, OXY,Trend Table,BP Trend.
Built-in rechargeable Lithium battery up to 3 hours of continuous work.
VGA output for external display.
Specifications:
| Standard Parameters | |
| ECG,RESP,TEMP,NIBP,SPO2,PR | |
| ECG | |
| Lead Mode | 5 Leads(I,II,III,AVR,AVL,AVF, V) |
| Gain | 2.5mm/mV,5.0mm/mV,10mm/m/mV,20mm/mV |
| Heart Rate | 15-300 BPM(Adult);15-350 BPM(Neonatal) |
| Resolution | 1 BPM |
| Accuracy | ±1% |
| Sensitivity | >200 uV(Peak to peak) |
| ST measurement range | -2.0~+2.0mV |
| Accuracy | -0.8mV~+0.8mV:±0.02mV or±10%,which is greater |
| Other Range | unspecified |
| Sweep speed | 12.5 mm/s,25mm/s,50mm/s |
| Bandwidth | Diagnostic:0.05~130 Hz Monitor:0.5~40 Hz Surgery:1~20 Hz |
| SPO2 | |
| Measuring Range | 0~100% |
| Resolution | 1% |
| Accuracy | 70%~100%(±2%) |
| Pulse Rate | 20-250 BPM |
| Resolution | 1 BPM |
| Accuracy | ±3BPM |
| NIBP | |
| Method | Oscillometry |
| Measure mode | Manual,Auto,STAT |
| Unit | mmHg,kPa |
| Measure and alarm range | Adult Mode SYS:40~280 mmHg DIA:10~225mmHg MEAN:20~240 mmHg Pediatric Mode SYS:40~220mmHg DIA:10~160mmHg MEAN:20~170 mmHg Neonatal Mode SYS:40~135mmHg DIA:10~100mmHg MEAN:20~110 mmHg |
| Resolution | 1mmHg |
| Accuracy | ±5mmHg |
| TEMP | |
| Measure and Alarm Range | 0~50 C |
| Resolution | 0.1C |
| Accuracy | ±0.1C |
| RESP | |
| Method | Impedance between RA-LL or RALA |
| Measurement Range | Adult:10~120 BrPM Neonatal/Pediatric:7~150BrPM |
| Resolution | 1 BrPM |
| Accuracy | ±2 BrPM |
