Model:CNME010443
Features:

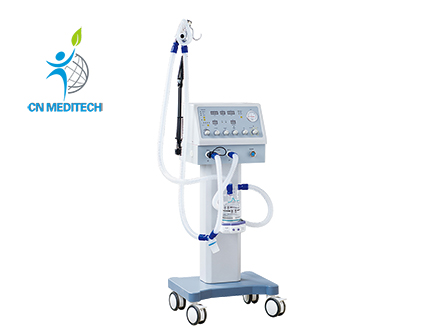

*Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy.

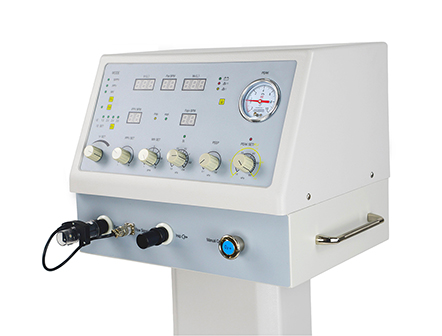

*Display:High visibility, wide angle LED alphanumeric data display,equipped with tactile analog parameter controls.
*Equipped with high precession infrared turbine pressure and flow sensors.
*Power Failure Support Functions: Automatically converts to standby mode during AC power outages.
*Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor.
*Alarms: Audible and/or visual alarms for tidal volume, airway pressure,power failure oxygen failure and other alarms.
*9 Level adjustable humidifier.
Specifications:
| Display | LED |
| Ventilation Mode | A/C, IPPV, SIPPV, IMV, SIMV, MANUAL |
| Minute Volume | Greater than or equal to 18L |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml Display range:0-2000ml |
| Output Oxygen | < 50% |
| Respiratory Rate | 6-60bpm |
| Pressure Limit | 1-6kPa |
| Inspiratory/Expiratory (I:E) Ratio | 1:1.5-1:3.0 |
| PEEP | 1-10cmH2O |
| SIMV Rate | 1-12bpm |
| Inspiratory Pressure Trigger | -4-10cmH2O |
| Maximum Safe Operating Pressure | ≤6.0 kPa |
| SIGH | 1 sigh breath in every 80-120 breaths |
| Gas Supply Requirement | 280~600 kPa medical grade oxygen |
